Ex Enclosed Safety Switch

ATEX & IECEx SERIES

Atex e IECEx enclosed isolation switch with lid secured quickly by quarter turn of captive screw, available in currents 25A, 40A, 80A and 180A. Allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position.

The switch is protected by a stainless steel AISI 316L enclosure, waterproof, antirust and with IP66 protection degree. It has a protection “Ex e” and “Ex d”, which allows use in zones with a high explosion risk.

iHATHOR - Ex Safety Switch in Box · iHATHORiHATHOR
iHATHOR - Ex Safety Switch in Box · iHATHORiHATHOR
iHATHOR - Ex Safety Switch in Box · iHATHORiHATHOR
iHATHOR - Ex Safety Switch in Box · iHATHORiHATHOR

This product has the following certificates

  • Logo IK10 · iHATHOR
  • Logo IP65 · iHATHOR
  • Logo IP66 · iHATHOR
  • Logo 10 year anti-corrosion · iHATHOR

Description

Atex e IECEx enclosed isolation switch with lid secured quickly by quarter turn of captive screw, available in currents 25A, 40A, 80A and 180A. Allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position. The enclosure is made of rigid stainless steel class AISI 304. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor and indoor use. The cable entries are of knock out types
It’s made up of two components:

  • The control component is a selector, which allows the current to go through the circuit or not. The ON position (1) allows the current, so blocks access to the machine through the mechanical blocker.  The OFF position (0) blocks the current, to allow any work on the machine to be carried out.
  • The isolation module allows the current to go through the circuit when the selector is in the ON position, and keep the current when the selector is in the OFF one.

This kind of switch is commonly used in any industry which uses machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation kept separate in places considered as potentially explosive, such as zones1, 2, 21 and 22.
The switch is protected by a stainless steel AISI 316L enclosure, specifically designed, waterproof, antirust and with IP66 protection degree. It has a protection “Ex e” and “Ex d”, which allows use in zones with a high explosion risk.



The Ex switch rated current is between 25 and 180A.
It can work between two temperature ranges, which give it a higher use capacity.

  • -20°C≤ Ta ≤60°C
  • -20°C≤ Ta ≤40°C

The Ex enclosure has:

  • The joint between the cover and body, is designed to secure an IP66 degree protection.
  • The selector has an IP65 degree protection.
  • It’s designed with stainless steel AISI 304L.
  • It includes two cable glands with “Ex e” protection in either M25 nickel plated brass or in stainless steel.
  • It has four wall brackets.
  • It has “Ex e” and “Ex d” protection, for use it in zones 1, 2, 21 and 22 with explosive atmospheres with dust and gas.

Discover the advantages

  • Long-life and high resistance
    The enclosures are made of high quality stainless steel grade Aisi 304L or Aisi 316L, UV resistant materials and the degree of protection is IP66. Suitable for indoors and outdoors.
  • Prevents electrical accidents
    Features such as padlockable handles and cover interlock allow safe maintenance and installation work.´
  • Quick and easy selection
    Our web based selection Configure enables the user to select the best switch for the application in an easy way.

It is impossible to start the machine when working on it thanks to the mechanical blocking of the disconnector.
It gives a total block.
It’s a necessary device in order to carry out maintaining, cleaning or overhauling.
Enclosure is made in AISI 316L stainless steel for marine or highly corrosive places.

Regulations

PROTECTION MODE

This equipment is certified for use in potentially explosive atmospheres in 1, 2, 21 and 22 zones and it has “Ex e” and “Ex d” (protection).
Atex mark:

  • II2G Ex d e IIC T6/T5 Gb
  • II2D Ex tb IIIC T85°C /T100°C Db
  • Certificate number: LOM14ATEX2082

IECEx mark:

  • IECEx LOM 18.0001X
    • Ex d e IIC T6/T5 Gb
    • Ex tb IIIC T85°C/T100°C Db

    NORMATIVE

    Atex directive and regulation:

    • Atex directive 2014/34/EU
    • EN 60079-0:2012
    • EN 60079-1:2007
    • EN 60079-7:2015
    • EN 60079-31:2010

    IECEx regulation:

    • IEC 60079-0:2011
    • IEC 60079-1:2006
    • IEC 60079-7:2015
    • IEC 60079-31:2013

    Enclosure regulation:

    • IP regulation (IP65): IEC 60529
    • IK regulation(IK10): IEC 62262

    Low voltage directive and regulation:

    • Directive 2014/35/EU
    • EN 61439-12011
    • EN 61439-22011

    Applications

    This kind of switch is commonly used in any industry which uses machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation kept separate in places considered as potentially explosive, such as zones1, 2, 21 and 22.


    Custom Made Solutions
    We offer multiple solutions

    Ex Enclosed Safety Switch · iHATHOR
    Do you need solutions?
    2021 product catalogues
    • There are two kinds of Ex selector, one normal and the other an emergency selector, in red and yellow.
    • Choice of poles between 3 poles, 3 poles + neutral, 4 poles and 6 poles.
    • Possibility of including auxiliary contacts.
    • Enclosure is made in AISI 316L stainless steel for marine or highly corrosive places.
    • Ex cable glands available in any size and thread.
    Customers also bought:
    Switch Disconnector 20A - 25A - 40A · iHATHORiHATHOR
    iHATHOR disconnectors available in 20A, 25A and 40A currents. BKP Series has been designed...
    Safety Switch 63A - 80A · iHATHORiHATHOR
    iHATHOR safety switch available in a wide range of currents from 63A and 80A. BKP Series has been...
    Switch Disconnector 100A - 125A · iHATHORiHATHOR
    iHATHOR switch disconnectors available in a wide range of currents from 100A and 125A. BKP Series...
    Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
    Switch disconnectors on-load H0 Series, are available from 125A for 250A, versions under request on...
    Ex Enclosed Switch Disconnector · iHATHORiHATHOR
    Ex enclosed switch disconnector the enclosure has a hinged door, with door lock, made in stainless...
    Ex GRP Switch Disconnector · iHATHORiHATHOR
    The GRP Enclosed Switch Disconnector are made of glass fibre reinforced polyester “Ex e”,...
    Ex Enclosed Safety Switch · iHATHOR

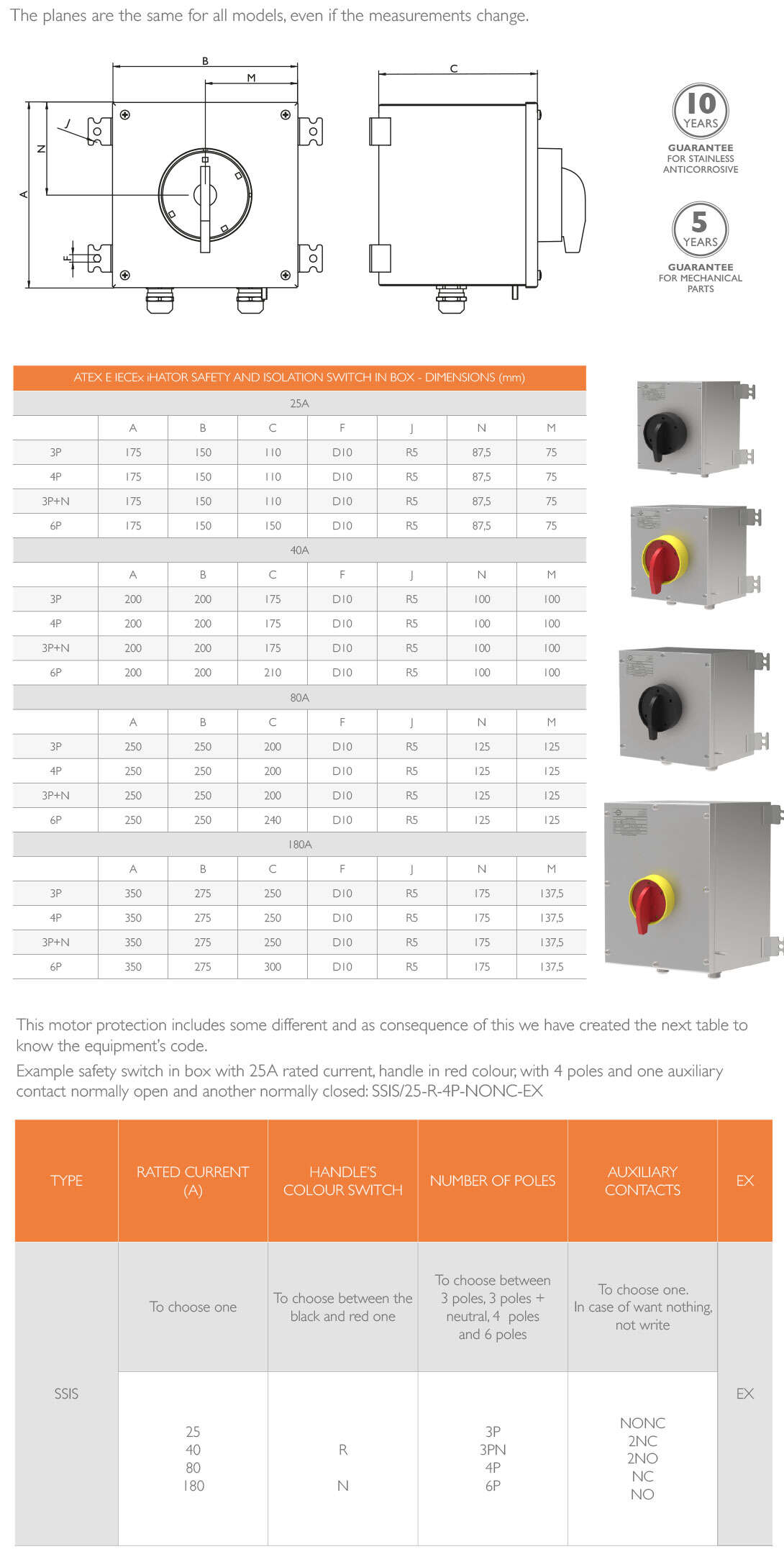

    Sketches
