Ex GRP Switch Disconnector

ATEX & IECEx SERIES

The GRP Enclosed Switch Disconnector are made of glass fibre reinforced polyester “Ex e”, available in currents 16A, 25A, 40A, 80A and 180A.

Lid secured quickly by quarter turn of captive screw

All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP66 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits.

Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water -proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.

iHATHOR - Ex GRP Switch Disconnector · iHATHORiHATHOR
iHATHOR - Ex GRP Switch Disconnector · iHATHORiHATHOR
iHATHOR - Ex GRP Switch Disconnector · iHATHORiHATHOR
iHATHOR - Ex GRP Switch Disconnector · iHATHORiHATHOR

This product has the following certificates

  • Logo CE · iHATHOR
  • Logo IEC EX · iHATHOR
  • Logo IP66 · iHATHOR

Description

The GRP Ex safety and isolation switch, allows work with a machine to safely maintain, clean and overhaul it as long as the switch is in the OFF position.

Lid secured quickly by quarter turn of captive screw

The GRP Ex safety and isolation switch are made of glass fibre reinforced polyester “Ex e”. All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP66 degree of protection. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water -proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.
Separately certified Ex load isolation switch module is mounted inside. lt can be used to disconnect the power when there is maintenance, clean and repair in the circuit with frenquency AC50/60Hz, rated voltage 230V and 690V, rated current 16~180A.
This kind of switch is commonly used in any industry which uses machines, because the electrical circuits and tri-phase asynchronous motors need the energy supply and the installation kept separate, in places considered as potentially explosive, such as zones1, 2, 21 and 22.



  • Explosion protection: Zones 1, 2, 21 and 22.
  • Degree of protection IP66.
  • IECEx and Atex international certification.
  • Switch is with interlock which is in the state of lock in, the switch is not turn on.
  • Operation handle with padlock device.
  • Utilization category: AC-23, AC-3.​
  • Enclosure features:
    • The enclosures of black are made of glass fibre reinforced polyester and concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar.
    • Lid secured quickly by quarter turn of captive screw
    • The entry may have polyamide, nickel-plated or stainless steel Ex cable glands. The unused entries must be sealed with the stopping plugs.

Discover the advantages

lt can be used to disconnect the power when there is maintenance, clean and repair in the circuit.

Get a total stoppage of the machinery so that the necessary activities can be carried out without any risk to the operator.

It is impossible to start the machine when working on it thanks to the mechanical blocking of the disconnector.

Boxes reinforced polyester Atex boxes with high corrosion protection, water-proof and dustproof.

Regulations

PROTECTION MODE

This equipment is certified for use in potentially explosive atmospheres in 1, 2, 21 and 22 zones and it has “Ex e” and “Ex d” (protection).
Atex mark:

  • CML 19ATEX3303X
  • II 2GD Ex db eb II C T6/T5 Gb
  • Ex tb III T80°C/T95°C Db

IECEx mark:

  • IECEx CML 19.0088X
  • Ex db eb II C T6/T5 Gb
  • Ex tb III C T80ºC/T95ºC Db

NORMATIVE

Atex directive and regulations:

  • Atex directive 2014/34/UE
  • EN 60079-0:2018
  • EN 60079-1:2014
  • EN 60079-7:2015
  • EN 60079-31:2014

IECEx regulations:

  • IEC 60079-0:2018
  • IEC 60079-1:2014
  • IEC 60079-7:2015
  • IEC 60079-31:2014

Enclosure regulations:

  • Degree of protection IP66

Certificate numbers:

  • IECEx CML 19.0088X
  • CML 19 ATEX 3303X

Protection type:

  • II 2GD Ex db eb ib mb llC T5 Gb
  • Ex ib tb lllC T95ºC Db

Normative:

  • Directive 2014/34/EU

Operating temperature (ambience):

  • -40ºC

Low voltage directive and regulation:

  • Directive 2014/35/UE
  • EN 61439-12011
  • EN 61439-22011

Applications

Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22; with features of high corrosion protection, water -proof and dustproof, they can meet the requirements in chemical, petrochemical and marine industries.

Custom Made Solutions
We offer multiple solutions

Ex GRP Switch Disconnector · iHATHOR
Do you need solutions?
2024 product catalogues
  • The Ex switch rated current is between: 18A, 25A, 40A, 80A and 180A.
  • The switch has two models of selectors:
    • black operation handle is standard type
    • red/yellow operation handle is emergency stop type
  • Choice of poles between 3 poles, 3 poles + neutral, 4 poles and 6 poles.
  • Possibility of including auxiliary contacts.
  • Atex cableglands:
    • polyamide
    • nickel-plated brass
    • stainless steel AISI 303L,  AISI 304L or AISI 316L
Customers also bought:
Switch Disconnector 20A - 25A - 40A · iHATHORiHATHOR
iHATHOR disconnectors available in 20A, 25A and 40A currents. BKP Series has been designed...
Safety Switch 63A - 80A · iHATHORiHATHOR
iHATHOR safety switch available in a wide range of currents from 63A and 80A. BKP Series has been...
Ex Enclosed Safety Switch · iHATHORiHATHOR
Atex e IECEx enclosed isolation switch with lid secured quickly by quarter turn of captive screw,...
Ex Enclosed Switch Disconnector · iHATHORiHATHOR
Ex enclosed switch disconnector the enclosure has a hinged door, with door lock, made in stainless...
Ex GRP Switch Disconnector · iHATHOR

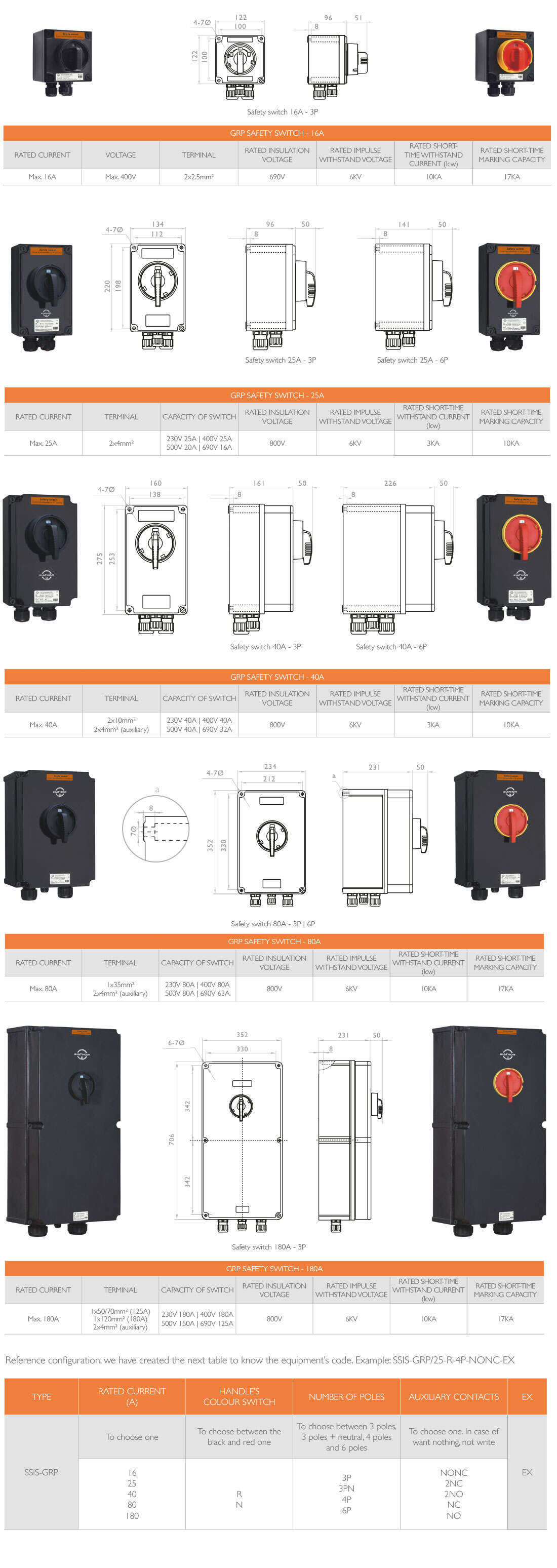

Sketches
