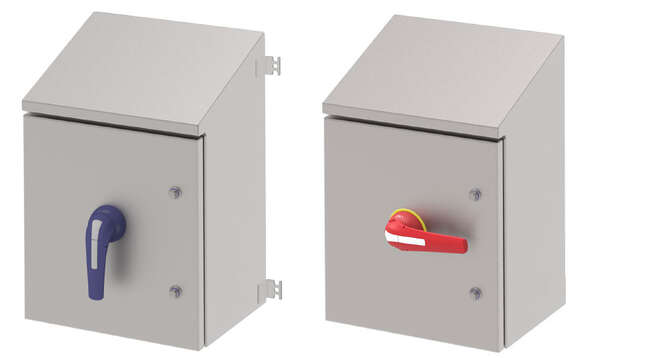

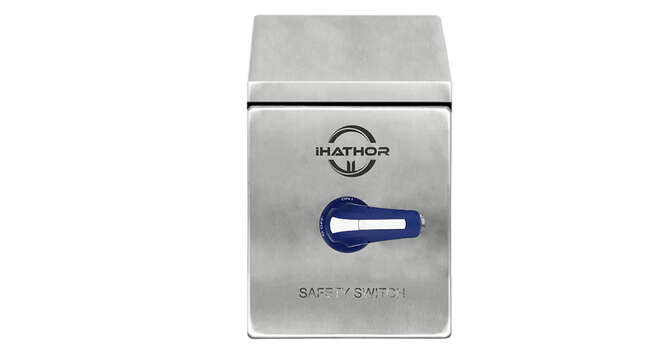

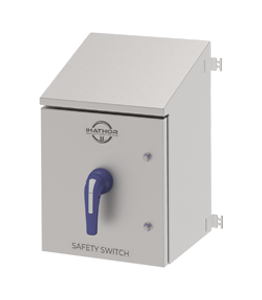

Hygienic Enclosed Safety Isolators 500A - 630A - 800A

Hygienic H2 Series

Enclosed hygienic safety isolators on-load Hygienic H2 Series, are available from 500A for 800A, versions under request on order. Rated breaking current of up to 8 times the rated operational current, with ability to establish and support short circuit currents up to 100kA. Is ideal for food handling facilities (clean rooms) or manufacturing processes which requires a high degree of hygiene. The European Hygienic Engineering & Design Group (EHEDG) has certified the compatibility of the safety switches with food processing systems.

Hygienic Enclosed Safety Isolators 500A - 630A - 800A · iHATHORiHATHOR
Hygienic Enclosed Safety Isolators 500A - 630A - 800A · iHATHORiHATHOR
Hygienic Enclosed Safety Isolators 500A - 630A - 800A · iHATHORiHATHOR

This product has the following certificates

  • Logo CE · iHATHOR
  • Logo IP66 · iHATHOR
  • Logo UL NEMA 12 · iHATHOR
  • Logo UL NEMA 3R · iHATHOR
  • Logo UL NEMA 4X · iHATHOR
  • Logo 10 year anti-corrosion · iHATHOR

Description

Enclosed hygienic safety isolators on-load Hygienic H2 Series, are available from 500A for 800A, versions under request on order. Rated breaking current of up to 8 times the rated operational current, with ability to establish and support short circuit currents up to 100kA. Is ideal for food handling facilities (clean rooms) or manufacturing processes which requires a high degree of hygiene. The European Hygienic Engineering & Design Group (EHEDG) has certified the compatibility of the safety switches with food processing systems.

iHATHOR Hygienic Series is a full line of safety and isolation switches with integral sloping roof offers additional protection and leads to self-draining of liquids, specially designed for food industry. No openings, hinges where bacteria could lie, moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.



Hygienic Switch Disconnector 500A - 630A - 800A iHATHOR

Discover the advantages

With electro-polished finish that helps dispel liquids and waterproof seal that prevents dirt and bacteria deposits.
The monobloc manufacture gives total sealing and maximum resistance.
No openings where bacteria could lie.
Ready for installation
Compact design.
Possibilities in custom housing design.
Versatility.
Fast delivery time.
Custom designs available.
Quantity discount.

Regulations

  • Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2:2006 for food industry machinery.
  • IEC/EN 60947-3
  • IP66 Norm IEC EN 62208 and EN 60529.
  • Maximum IK10 resistance Norm IEC62208 and IEC 62262.
  • UE Directive of low voltage 2014/35/UE.
  • Materials intended to come into contact with food, CE 1935/2004.
  • Offhore, maritime grade IP66.
  • UL Standard(s) Safety: UL508A- Industrial Control Panels, CSA C22.2 No.14- Industrial Control Equipment.

Applications

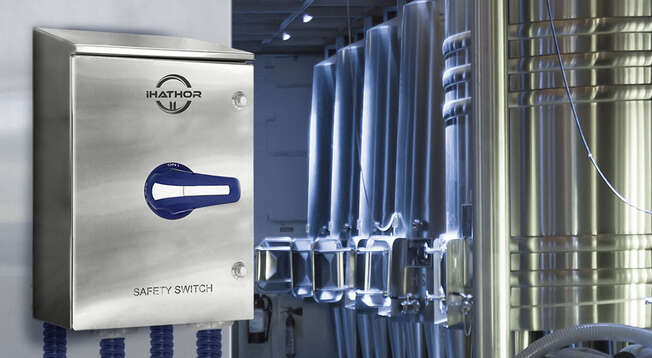

Hygienic safety switches installation where require special vigilance in compliance with their demanding regulations in places that require a high level of hygiene such as medical machinery, food industry, clean rooms, pharmaceutical industry,...
iHATHOR hygienic safety switches are reliable and provide safety to your property and your personnel in addition to providing:

  • Protection against overcurrent.
  • Protection against circuit overloads.
  • Protection against short circuiting.
  • Protection against heat-generated damage.

Safety switches are designed to interrupt the power in the event of a single fault in the circuit. Custom solutions projects for small and large series. iHATHOR is certified UL, Nema 4x.

Custom Made Solutions
We offer multiple solutions

Hygienic Enclosed Safety Isolators 500A - 630A - 800A · iHATHOR
Do you need solutions?
2021 product catalogues
  • The most standard products are presented, options are available upon request.
  • Option multiple of switch, nº of poles, current, aux. contacts,...
  • Drills in base your needs.
  • Option of different supports.
  • Option of manufactured in different materials: stainless steel AISI 316L (enclosure maritime grade) or painted galvanized steel finish in RAL 7035 or another color.
  • Design on IP67 or IP68 box.
  • Possibility of Atex load switch.
