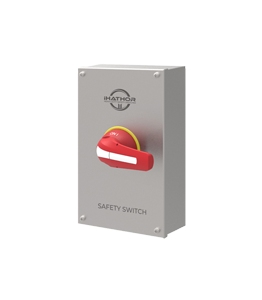

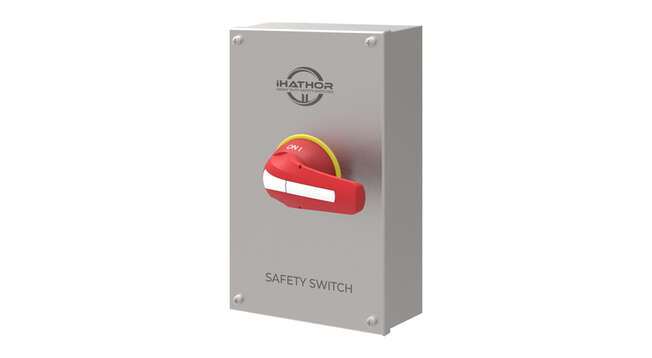

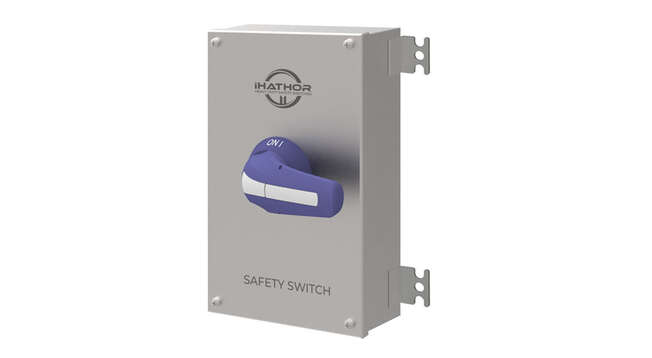

EMC Safety Switch 125A - 150A - 200A - 250A

EMC H0 Series

Switch disconnectors on-load EMC H0 Series, are available from 125A for 250A, versions under request on order. Rated breaking current of up to 8 times the rated operational current, with ability to establish and support short circuit currents up to 100kA; uninterrupted duties in extreme tropic and polar conditions, as well electromagnetic environment.

EMC Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
EMC Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
EMC Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
EMC Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR
EMC Safety Switch 125A - 150A - 200A - 250A · iHATHORiHATHOR

This product has the following certificates

  • Logo CE · iHATHOR
  • Logo EMC · iHATHOR
  • Logo IK10 · iHATHOR
  • Logo IP66 · iHATHOR
  • Logo UL NEMA 12 · iHATHOR
  • Logo UL NEMA 3R · iHATHOR
  • Logo UL NEMA 4X · iHATHOR
  • Logo 10 year anti-corrosion · iHATHOR

Description

Switch disconnectors on-load EMC H0 Series, are available from 125A for 250A, versions under request on order. Rated breaking current of up to 8 times the rated operational current, with ability to establish and support short circuit currents up to 100kA; uninterrupted duties in extreme tropic and polar conditions, as well electromagnetic environment.

iHATHOR EMC Series is a full line of safety and isolation switches of indoor and outdoor applications (made in stainless steel AISI 304L).
We design and manufacture every product ourselves in our own factories. Focused heavily on safety, iHATHOR’s switching device product line brings state-of-the art designs that can even be customized to fit your unique needs. iHATHOR switch disconnectors on-load, are available from 20A to 1800A, a large range for solving the different necessity in a electromagnetic environment.



EMC Safety Switch 125A - 150A - 200A - 250A

Discover the advantages

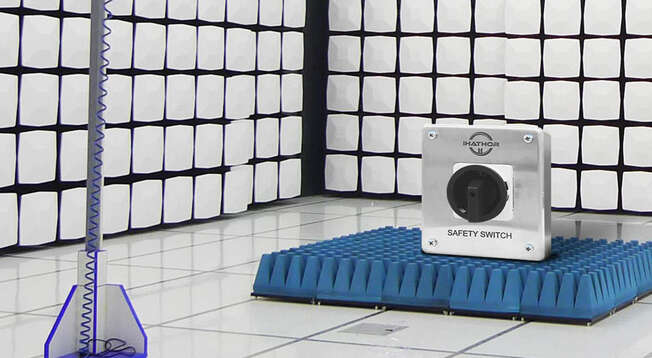

Ready for installation in a electromagnetic environment.

Compact design.

Possibilities in custom housing design.

Versatility.

Fast delivery time.

Custom designs available.

Quantity discount.

Regulations

  • Complies with 2014/30/UE and EMC Directive 2014/35/UE.
  • IEC/EN 60947-3
  • IP66 Norm IEC EN 62208 and EN 60529.
  • Maximum IK10 resistance Norm IEC62208 and IEC 62262.
  • UE Directive of low voltage 2014/35/UE.
  • Materials intended to come into contact with food, CE 1935/2004.
  • Offhore, maritime grade IP66.
  • UL Standard(s) Safety: UL508A- Industrial Control Panels, CSA C22.2 No.14- Industrial Control Equipment.

Applications

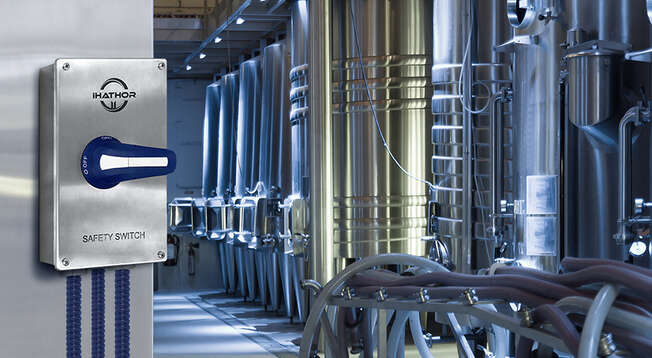

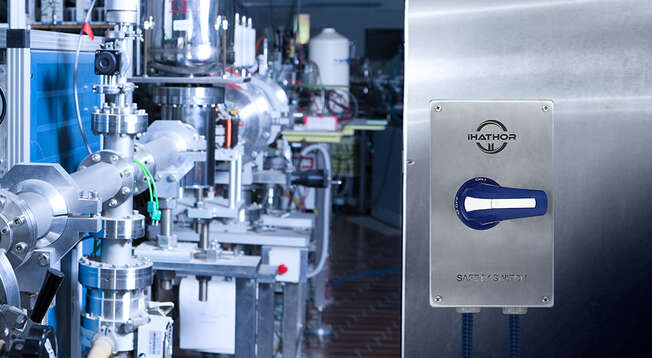

Safely cut off electricity in your electrical installations: aeronautics, medical equipment, professional electronics, safe in solar and wind renewable energy, offshore, maritime, power distribution, food industry, manufacturing machinery and other general industries.

iHATHOR safety switches are reliable and provide safety to your property and your personnel in addition to providing:

  • Protection against in a electromagnetic environment.
  • Protection against overcurrent.
  • Protection against circuit overloads.
  • Protection against short circuiting.

Custom Made Solutions
We offer multiple solutions

EMC Safety Switch 125A - 150A - 200A - 250A · iHATHOR
Do you need solutions?
2024 product catalogues
  • The most standard products are presented, options are available upon request.
  • Option multiple of switch, nº of poles, current, aux. contacts,...
  • Drills in base your needs.
  • Option of different supports.
  • Option of manufactured in different materials: stainless steel AISI 316L (enclosure maritime grade) or painted galvanized steel finish in RAL 7035 or another color.
  • Design on IP67 or IP68 box.
  • Possibility of Atex load switch.
Customers also bought:
EMC Switch Disconnector 20A - 25A - 40A · iHATHORiHATHOR
iHATHOR switch disconnectors available in a wide range of currents from 20A up 40A. EMC BKP Series...
EMC Safety Switch 63A - 80A · iHATHORiHATHOR
iHATHOR switch disconnectors available in a wide range of currents from 63A up 80A. EMC BKP Series...
EMC Switch Disconnector 100A - 125A · iHATHORiHATHOR
iHATHOR switch disconnectors available in a wide range of currents from 100A up 125A. EMC BKP Series...
EMC Switch Disconnector 315A - 400A · iHATHORiHATHOR
Switch disconnectors on-load EMC H1 Series, are available from 315A for 400A, versions under request...
EMC Switch Disconnector  500A - 630A - 800A · iHATHORiHATHOR
Switch disconnectors on-load EMC H2 Series, are available from 500A for 800A, versions under request...
EMC Safety Switch 1000A - 1250A - 1600A - 1800A · iHATHORiHATHOR
Switch disconnectors on-load EMC H3 Series, are available from 1000A for 1800A, versions under...
EMC Safety Switch 125A - 150A - 200A - 250A · iHATHOR

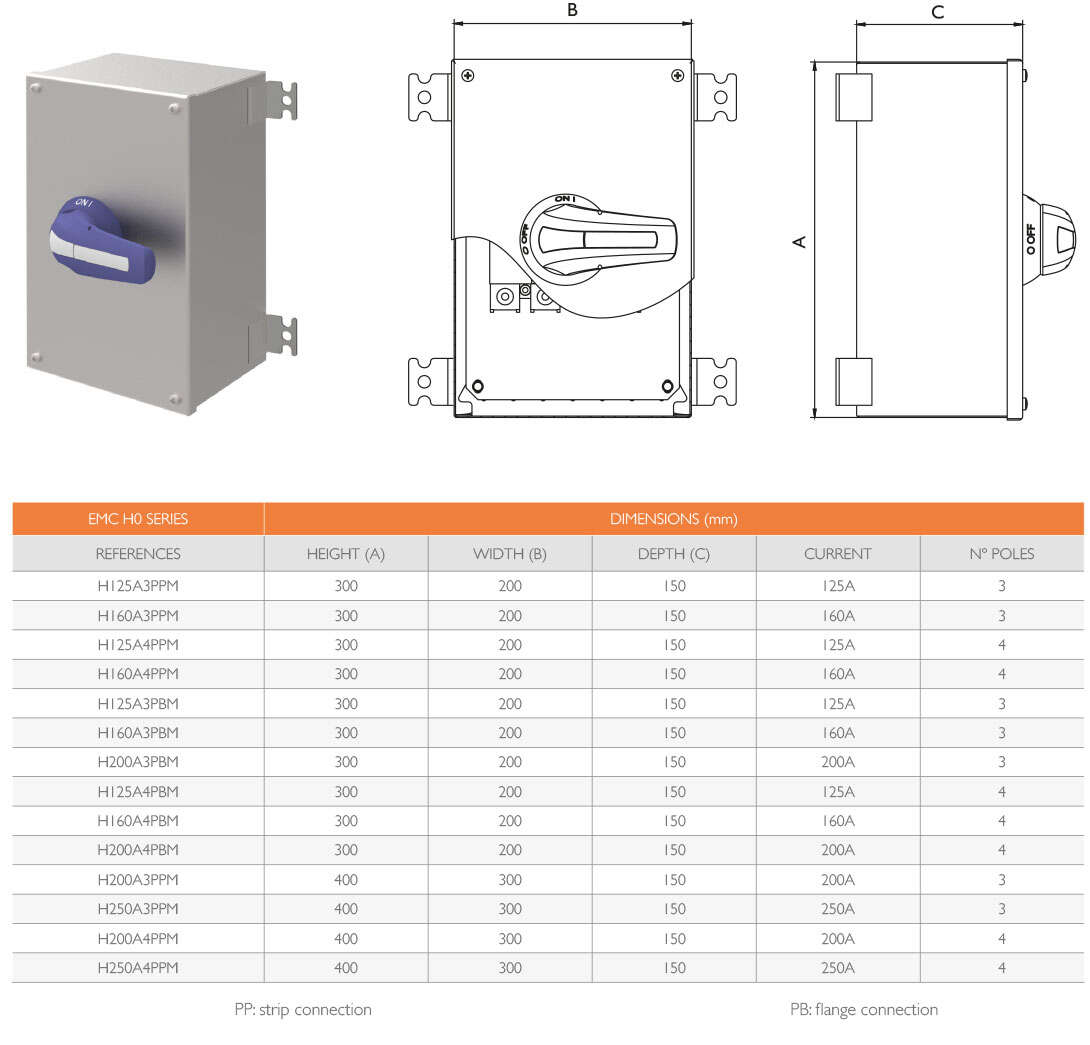

Sketches
